welded mesh machine


Property: Stable and firm, low noise, automatic straightening and feeding of weft wire. An idea machine for making of iron wire welded wire mesh.

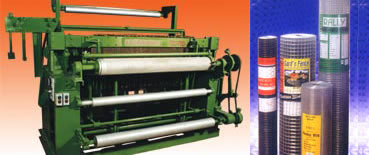

L-DHW4 Model Welded Wire Mesh Machine
Features and Application: Stable and firm, low noise, automatic straightening and feeding of weft wire. Suitable for production of 1/2"-4" welded wire mesh.

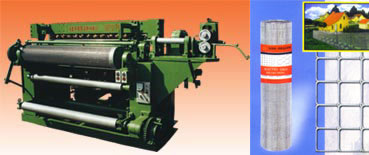

J-DHW4 Model Welded Wire Mesh Machine

Features and Application: Precise, low noise, reliable and power saving. Suitable for production of small opening welded wire mesh with small wire gauge, i.e. Ø0.45-Ø1.07,1/4"-1/2".



Mesh Opening 12.7-101.6(1/2"-4")
Roll Width 914.4-1219.2
(12"-48")

Wire Diameter
Ø0.63-Ø2
(BWG23-BWG14)
Max. Roll Size 120(400')
Welding Speed (mesh/m) 65
(radial)
power 380/220V.50-60HZ
50KWA×4
Dimension 2600×1700×1350
