Structure:he drawing equipment consists of main reduction box, die casing, wheel frame, wire brace and electeical control system. The spinning drawing blocks are driven by JZT or Y series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body. The gear are lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in interwall of the block.
The machine runs with carwl or linkage. The safety halt gear is installed by the position of operating block.

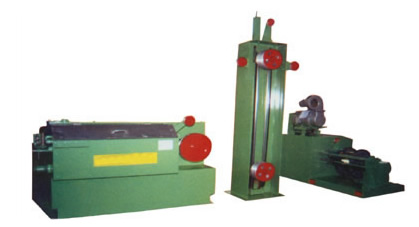

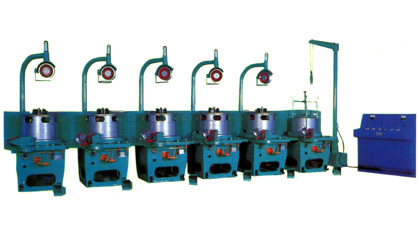

We can supply two types of water trunk type drawing machine, one for medium size and another for fine wires. The cylinder is tower wheel type that enables high speed, efficiency and small occupation of space.
The main technical parameters are as follows: A. Feeding wire diameter: φ8-6.8MM
B. Outgoing wire diameter : 3.0-2.6MM
C. Drawing times: 8 Die
D. Electric motor power: 75-90kW
E. Speed :320 - 360M / min
F. Speed fixing wheel diameter : φ360MM
G. Productivity per hour: 1000-1200kg / n
H. Annual output : 4000T
I. Occupied land area: 15000 x 2500 × 2000 (length x width x height)
